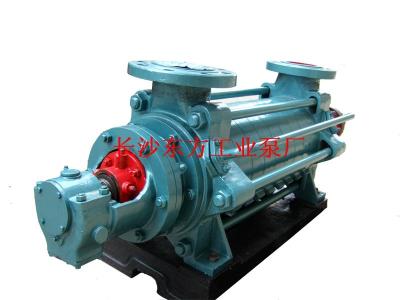

供應DG12-25*11導葉套DG12-25*11進水段、填料壓蓋、尾蓋、擋套、擋水圈、出水段、中導葉，各配件標準尺寸提供，我廠二十多年生產經驗， 技術先進，品質卓越，廠價直銷，運行平穩，服務周到，現貨供應，發貨速度快，免費為您提供技術參數，性能曲線圖，安裝尺寸圖，歡迎前來咨詢定購！！！！！
| DG12-25×3 | 7.5 | 2.08 | 84.6 | 2950 | 3.93 | 7.5 | Y132S2-2 | 44 | 2 | 50 | 40 | 116 |
| 12.5 | 3.47 | 75 | 4.73 | 54 | 2 |
| 15 | 4.17 | 69 | 5.32 | 53 | 2.5 |
| DG12-25×4 | 7.5 | 2.08 | 112.8 | 2950 | 5.24 | 11 | Y160M1-2 | 44 | 2 | 50 | 40 | 135 |
| 12.5 | 3.47 | 100 | 6.3 | 54 | 2 |
| 15 | 4.17 | 92 | 7.09 | 53 | 2.5 |
| DG12-25×5 | 7.5 | 2.08 | 141 | 2950 | 6.55 | 11 | Y160M1-2 | 44 | 2 | 50 | 40 | 145 |
| 12.5 | 3.47 | 125 | 7.88 | 54 | 2 |
| 15 | 4.17 | 115 | 8.86 | 53 | 2.5 |
| DG12-25×6 | 7.5 | 2.08 | 169.2 | 2950 | 7.85 | 15 | Y160M2-2 | 44 | 2 | 50 | 40 | 153 |
| 12.5 | 3.47 | 150 | 9.46 | 54 | 2 |
| 15 | 4.17 | 138 | 10.64 | 53 | 2.5 |
| DG12-25×7 | 7.5 | 2.08 | 197.4 | 2950 | 9.16 | 15 | Y160M2-2 | 44 | 2 | 50 | 40 | 163 |
| 12.5 | 3.47 | 175 | 11 | 54 | 2 |
| 15 | 4.17 | 161 | 12.41 | 53 | 2.5 |
| DG12-25×8 | 7.5 | 2.08 | 225.6 | 2950 | 10.47 | 18.5 | Y160L-2 | 44 | 2 | 50 | 40 | 176 |
| 12.5 | 3.47 | 200 | 12.61 | 54 | 2 |
| 15 | 4.17 | 184 | 14.18 | 53 | 2.5 |
| DG12-25×9 | 7.5 | 2.08 | 253.8 | 2950 | 11.78 | 18.5 | Y160L-2 | 44 | 2 | 50 | 40 | 185 |
| 12.5 | 3.47 | 225 | 14.18 | 54 | 2 |
| 15 | 4.17 | 207 | 15.95 | 53 | 2.5 |
| DG12-25×10 | 7.5 | 2.08 | 282 | 2950 | 13.09 | 22 | Y180M-2 | 44 | 2 | 50 | 40 | 203 |
| 12.5 | 3.47 | 250 | 15.76 | 54 | 2 |
| 15 | 4.17 | 230 | 17.73 | 53 | 2.5 |
| DG12-25×11 | 7.5 | 2.08 | 310.2 | 2950 | 14.4 | 22 | Y180M-2 | 44 | 2 | 50 | 40 | 212 |
| 12.5 | 3.47 | 275 | 17.34 | 54 | 2 |
| 15 | 4.17 | 263 | 19.5 | 53 | 2.5 |
| DG12-25×12 | 7.5 | 2.08 | 338.4 | 2950 | 15.7 | 30 | Y200L1-2 | 44 | 2 | 50 | 40 | 200 |
| 12.5 | 3.47 | 200 | 18.9 | 54 | 2 |
| 15 | 4.17 | 276 | 21.3 | 53 | 2.5 |
