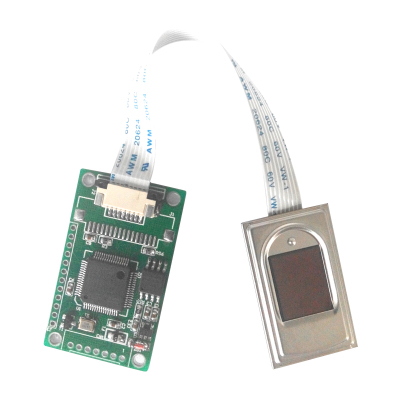

Capacitive fingerprint module IDWD1011 is Eddie ward a new generation of highly efficient fingerprint identification module, Eddie ward of independent research and development and production. Applicable to the attendance, entrance guard, locks and security fields. FPC1011 using capacitive sensor, integrated high-speed, high-performance processor, efficient complete fingerprint acquisition, image processing, templates, template matching, fingerprint retrieval and storage such as templates, with independent intellectual property rights, high cost performance, provide free SC software development kit. Has small volume, low power consumption, simple interface, high reliability, small fingerprint template (496 bytes), large capacity fingerprint recognition fingerprint identification response time is less than 1.5 seconds (3000), etc, can be very convenient and embed it in the user's system, composed of the fingerprint identification products to meet customer demand. Especially have self-learning function, fingerprint identification process, the latest extract fingerprint characteristic value to identify the characteristic value after successful fusion fingerprint database, the user in the process of using the with the works.
Capacitive fingerprint module IDWD1011 profile
In the PC or under MCU control, fingerprint collection, image processing, independently to generate and store the fingerprint template, template matching (1:1) and fingerprint retrieval (1: N), etc
The developer according to the instruction of IDWD1011 can develop powerful fingerprint identification system
Support COM and TTL/RS232 communication
Dormancy/work control function can effectively reduce the power consumption
Good recognition and low-quality fingerprint error correction rate
Can be synchronized to generate the fingerprint image
Developers can set according to the different equipment level of security
According to the different using environment freedom to set working mode
Optional EVK, provide the SC software development kit
Fingerprint capacity: 2000
